Connector A: | RJ45 Ethernet Female |
Connector B: | Punch Down |
Color: | Black |
Ship Weight:
|
0.04 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8536.69.40.30 |

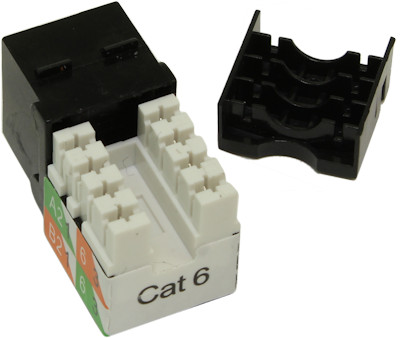

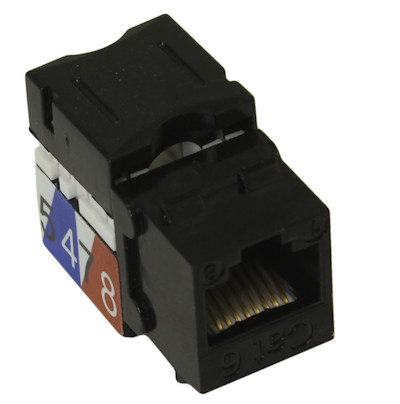

Cat 6 (also suitable for Cat 5E) style Keystone jack.
- For use with Keystone panels or wall plates (not included, sold separately)
- Front is RJ-45 8 wire connection (A or B standard color coded)
- Top caps included
- Punch-out type connections for rear
- Note: Knowledge of networking and wiring is required to properly connect.
- 50 micron gold plated contact pins
- SLIM format - designed to fit side-by-side and patch panel installations
- Max width (at back): 18.0mm
My Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
